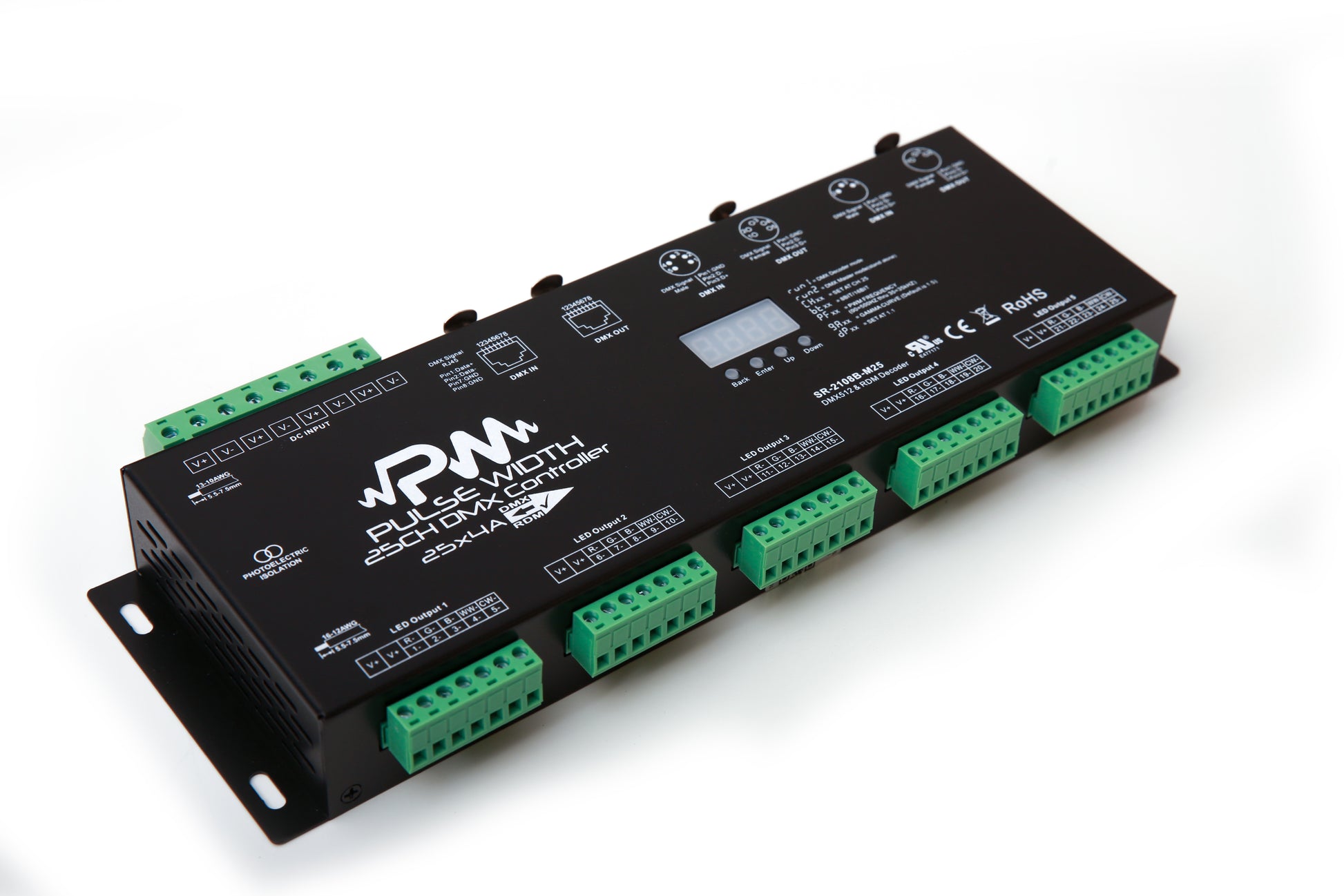

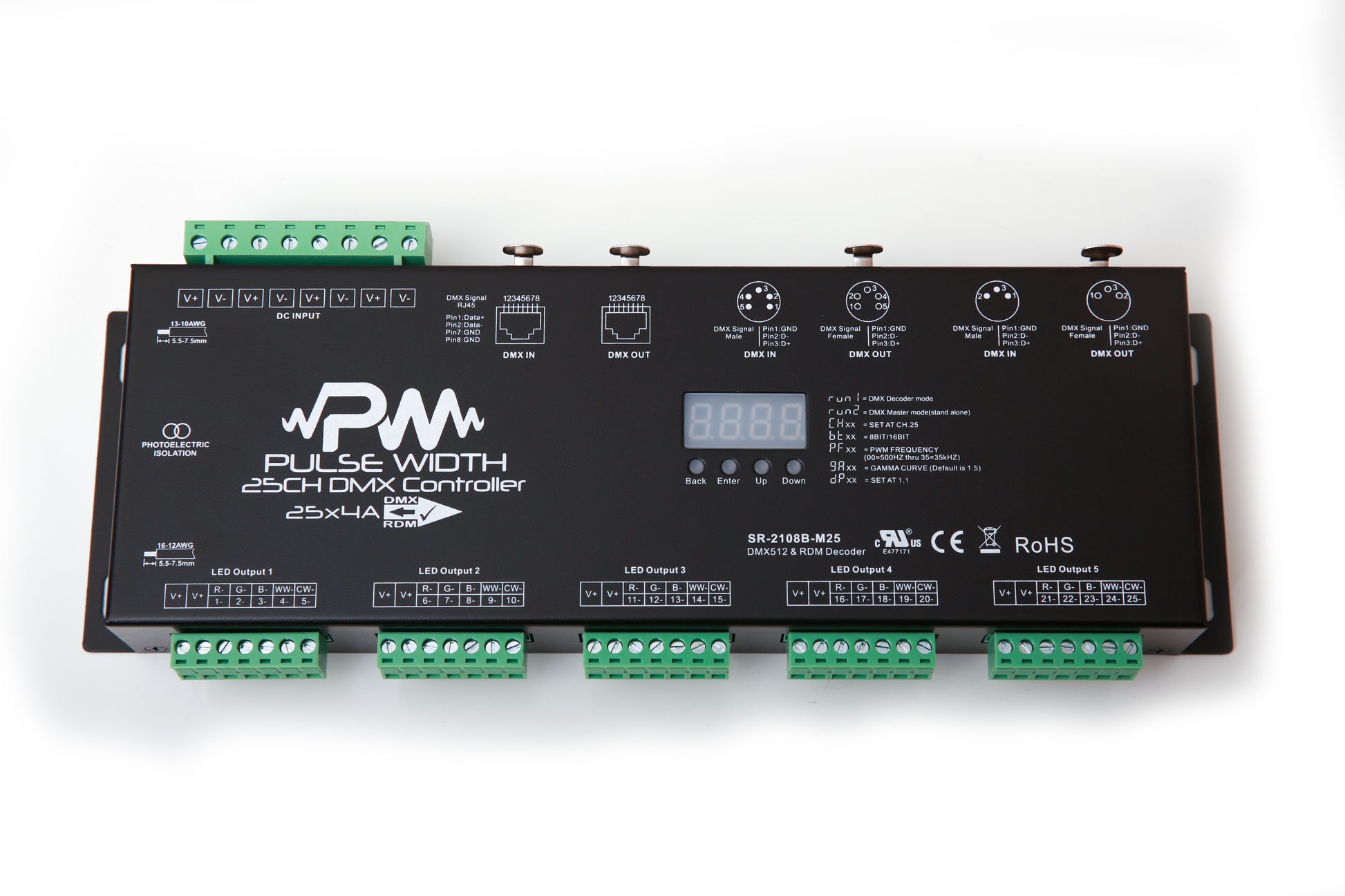

Pulse Width 25CH DMX LED Controller

The Pulse Width 25 Channel DMX Digital Decoder is a full featured decoder designed for Professional LED strip light installations. This product integrates seamlessly with any 5-in-1 LED light strip, reducing installation time and simplifying wiring. It features an adjustable PWM output from 500Hz to 35kHz and supports 25 output channels with a maximum of 4 amps per channel.

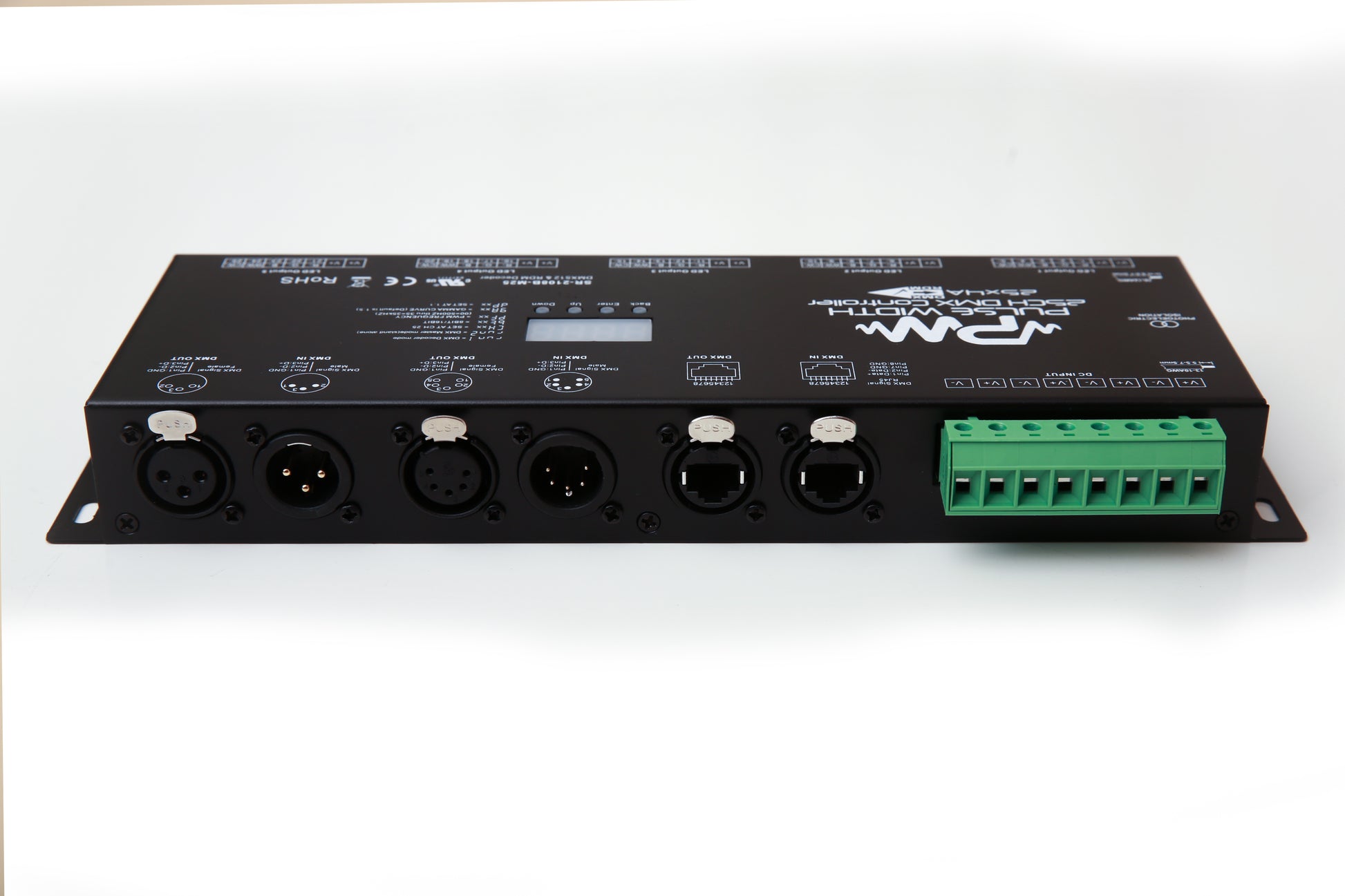

This decoder is RDM enabled and has standalone functionality. It is highly configurable with a convenient digital display that allows the setup of DMX addresses without the use of DIP switches as well as standard input options of ethernet or 5 pin DMX.

• Model: PWL-CTRL-25CH
• RDM: Yes
• Adjustable PWM Frequency: 500Hz-35Khz
• Maximum Input Current: 8A

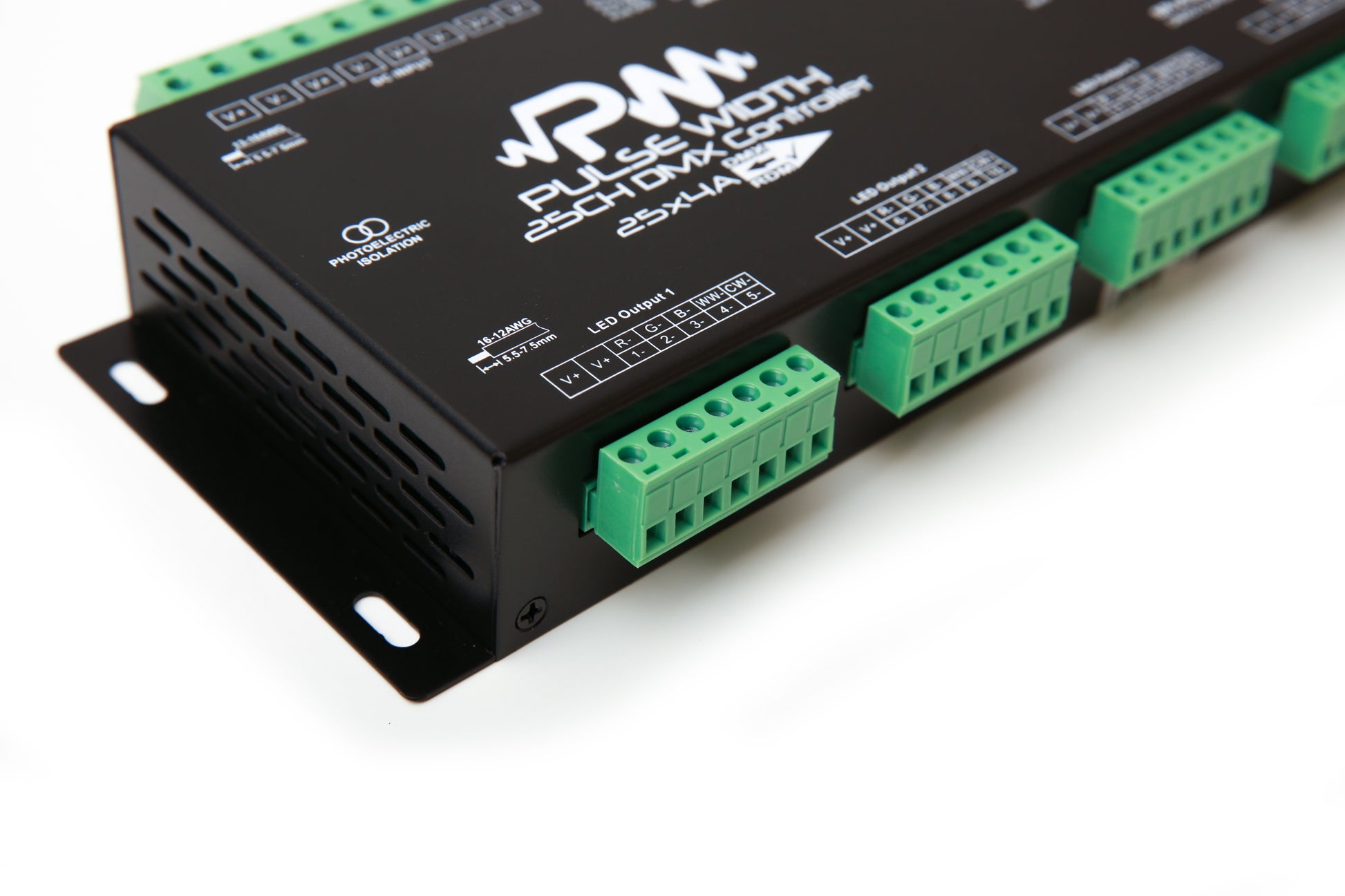

• Output Connector Type:  Removeable Phoenix Terminal
• Number of Outputs: 5x5
• Product Type: DMX RDM LED Controller
• Efficiency: 94% Minimum
• Operating Temperature-Min: -40c
• Operating Temperature-Max: 70c
• Output Current: 40A
• Input Voltage: 12v-24v

• Maximum Output Power: 960W
• Protection: Overcurrent Auto-Reset
